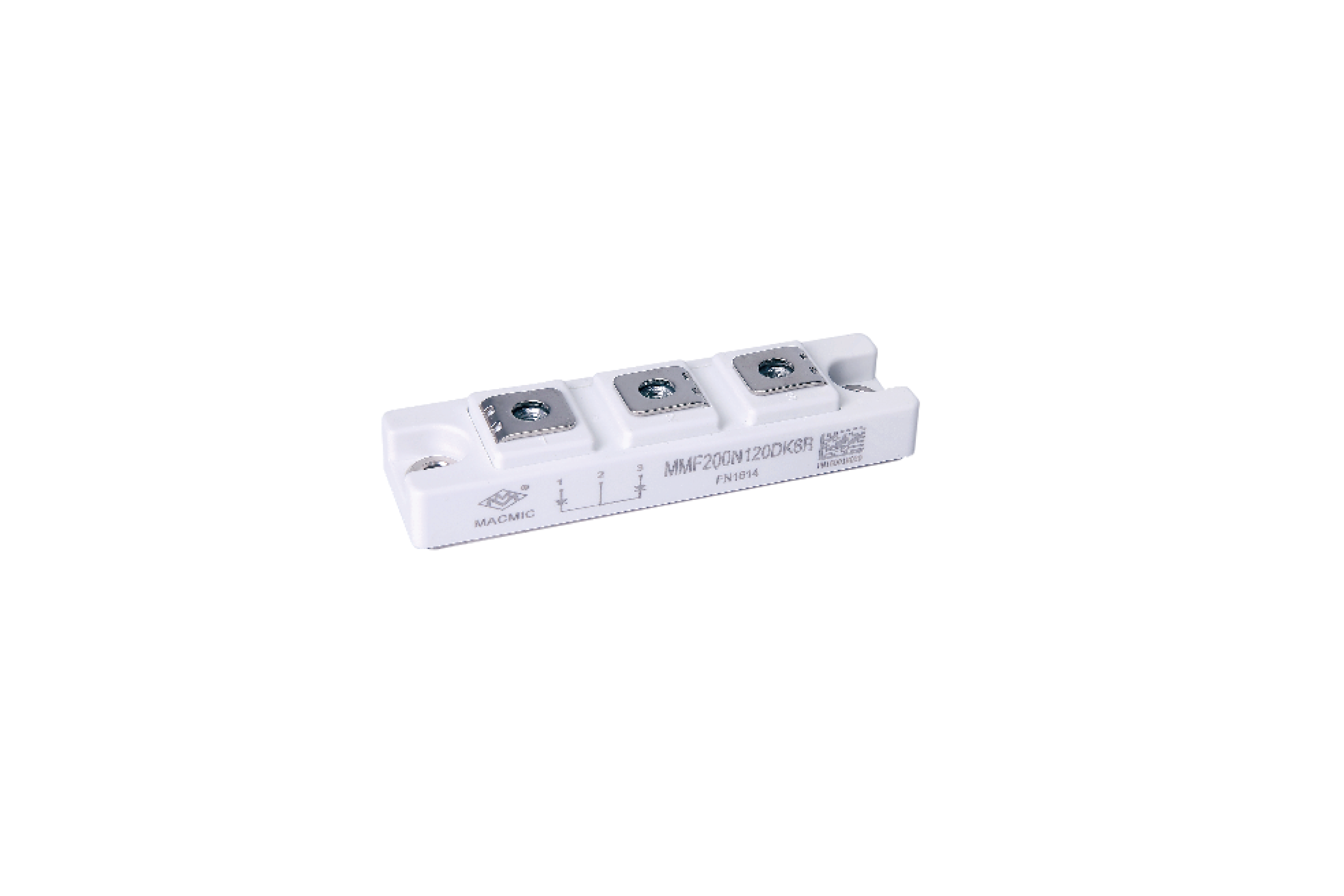

Fast Diode Module

Name: Fast Diode Module
Brand: MacMic
SKU: MacMic Fast Diode Discrete

1 / 7

2 / 7

3 / 7

4 / 7

5 / 7

FYB

6 / 7

7 / 7

❮ ❯

MacMic FRED module is fully made by our own FRED chip with the best cost performance in the industry. Based on the market requirements, we have products made in the low-cost non-isolated package and the full-isolated package. MacMic FRED modules have superior characteristics of fast and soft recovery characteristics which are excellent using in high speed switching such as PFC and Chopper applications. Its low Vf feature suggests the low conduction loss making the product excellent apply in the output rectification circuit. The product line offers various inside circuit configuration that helps the designers easily to choose, including Single Unit, Half-Bridge, Common-Cathode, and Common-Anode.

RANGES:

100-1700V /60-600A

FEATURES:

Short Recovery Time
Low Reverse Recovery Charge
Soft-recovery Characteristics
Low Forward Voltage
Avalanche Energy Rated
Stressless Package

CIRCUIT CONFIGURATIONS:

Non-insulated Common-cathode Circuit
Insulated Common-cathod Circuit
Insulated Common-anodic Circuit
Insulated Half Bridge Circuit

APPLICATIONS:

Welding Machine
SMPS,UPS
Inverter
Chopper
PFC

DATASHEET

TC = 25°C unless otherwise noted.

Type	V_RRM (V)	I_F(AV) (A)	V_F (V)	t_rr (ns)	P_D (W)	R_thJC (℃/W)	Packages	Datasheet	Inquiry
MMF2X100J120D6B	1200	2X100	3.25	150	280	0.44	FJ		Add
MMF2X60J120D	1200	2X60	1.8	135	192	0.65	FJ		Add
MMF2X100J120D	1200	2X100	2.15	125	312	0.4	FJ		Add
MMF2X60J070D	700	2X60	1.15	150	208	0.6	FJ		Add
MMF2X100J060D	600	2X100	1.35	95	417	0.3	FJ		Add
MMF2X100J040D	400	2X100	1.2	62	360	0.34	FJ		Add
MMF400Z020DK1	200	2X200	0.95	90	625	0.2	FZ		Add
MMF200ZB040DK1B	400	2X100	1	70	625	0.2	FZ		Add
MMF200ZB040DK1D	400	2X100	1.25	49	338	0.37	FZ		Add
MMF200ZB060DK1C	600	2X100	1.2	130	500	0.25	FZ		Add
MMF200ZB060DK1	600	2X100	1.15	105	625	0.2	FZ		Add
MMF200ZB040DK1	400	2X100	1	70	625	0.2	FZ		Add
MMF200ZB040DK1C	400	2X100	1.1	75	560	0.22	FZ		Add
MMF400N010DK6B	100	2X200	0.62	105	520	0.24	FN		Add
MMF100N120B	1200	2X100	1.6	135	280	0.44	FN		Add
MMF150N060B6B	600	2X150	1.15	130	370	0.34	FN		Add
MMF200N070DA	700	2X100	1.2	140	370	0.34	FN		Add
MMF200N120DA	1200	2X100	1.77	150	280	0.44	FN		Add
MMF200N120DK6B	1200	2X100	3.25	150	280	0.44	FN		Add
MMF400N020DK2B	200	2X200	0.9	135	370	0.34	FN		Add
MMF200N120DA6B	1200	2X100	3.25	150	280	0.44	FN		Add
MMF200N070DK	700	2X100	1.2	140	370	0.34	FN		Add
MMF200N120DK	1200	2X100	1.77	150	280	0.44	FN		Add
MMF300N060DK6B	600	2X150	1.25	95	370	0.34	FN		Add
MMF800Y020DK1	200	2X400	1	165	1562	0.08	FY		Add
MMF400Y040DK1B	400	2X200	1.2	75	1562	0.08	FY		Add
MMF300Y040DK1B	400	2X150	1.2	65	1250	0.1	FY		Add
MMF200Y060DK1	600	2X100	1.2	91	625	0.2	FY		Add
MMF300Y040DK1	400	2X150	1.2	65	1250	0.1	FY		Add
MMF300Y060DK1B	600	2X150	1.3	95	1670	0.075	FY		Add
MMF300Y060DK1	600	2X150	1.2	100	1560	0.08	FY		Add
MMF400Y040DK1	400	2X200	1.2	75	1562	0.08	FY		Add
MMF1000Y010DK1	100	2X500	0.84	100	1041	0.12	FY		Add
MMF200Y040DK1	400	2X100	1	70	625	0.1	FY		Add
MMF400Y010DK1	100	2X200	1	65	694	0.18	FY		Add
MMF300YB070U	700	300	1.38	121	1040	0.12	FYB		Add
MMF300YB050U	500	300	1.2	160	1136	0.11	FYB		Add
MMF400S060DK2B	600	2X400	1.3	162	1136	0.11	FS		Add
MMF300S120DA2B	1200	2X300	2.8	135	893	0.14	FS		Add
MMF300S120B2B	1200	2X300	2.8	135	893	0.14	FS		Add
MMF150S120DA	1200	2X150	1.6	145	568	0.22	FS		Add
MMF150S120B2B	1200	2X150	1.6	145	568	0.22	FS		Add
MMF300S120DA	1200	2X300	2.8	135	893	0.14	FS		Add
MMF300S060DA	600	2X300	1.15	150	893	0.14	FS		Add
MMF200S120DA	1200	2X200	2.3	110	568	0.22	FS		Add
MMF200S060DA	600	2X200	1.15	140	694	0.18	FS		Add
MMF150S060DA	600	2X150	1.15	130	569	0.22	FS		Add
MMF600S060U	600	600	1.15	175	1665	0.075	FS		Add
MMF300S120U	1200	300	2.75	150	890	0.14	FS		Add
MMF400S120U	1200	400	3	180	1136	0.11	FS		Add
MMF600S120U	1200	600	2.8	200	1250	0.1	FS		Add
MMF100S170B2B	1700	2X100	1.8	500	568	0.22	FS		Add
MMF200S170DA2B	1700	2X200	1.8	750	893	0.14	FS		Add
MMF300S120DK2B	1200	2X300	2.8	135	893	0.14	FS		Add
MMF200S120DK2B	1200	2X200	2.3	110	568	0.22	FS		Add
MMF150S120DK2B	1200	2X150	1.6	145	568	0.22	FS		Add
MMF300S060DK2B	600	2X300	1.1	165	835	0.15	FS		Add
MMF200S060DK2B	600	2X200	1.15	140	694	0.18	FS		Add
MMF150S060DK2B	600	2X150	1.25	95	416	0.3	FS		Add
MMF400S040DK2B	400	2X400	1.55	120	1250	0.1	FS		Add
MMF400S170U	1700	400	1.8	1100	1350	0.09	FS		Add
MMF100S170DK	1700	2X100	1.8	500	568	0.22	FS		Add
MMF300S120DK	1200	2X300	2.8	135	893	0.14	FS		Add
MMF200S120DK	1200	2X200	2.3	110	568	0.22	FS		Add
MMF150S120DK	1200	2X150	1.6	145	568	0.22	FS		Add
MMF300S060DK	600	2X300	1.15	150	893	0.14	FS		Add
MMF200S060DK	600	2X200	1.15	140	694	0.18	FS		Add
MMF150S060DK	600	2X150	1.15	130	568	0.22	FS		Add
MMF200S170B	1700	2X200	1.8	750	893	0.14	FS		Add
MMF100S170B	1700	2X100	1.8	500	568	0.22	FS		Add
MMF300S120B	1200	2X300	2.8	135	893	0.14	FS		Add
MMF200S120B	1200	2X200	2.3	110	568	0.22	FS		Add
MMF150S120B	1200	2X150	1.6	145	568	0.22	FS		Add
MMF300S060B	600	2X300	1.15	150	893	0.14	FS		Add
MMF200S060B	600	2X200	1.15	140	694	0.18	FS		Add
MMF150S060B	600	2X150	1.15	130	568	0.22	FS		Add
MMF400D170B2B	1700	2X400	1.95	2000	1250	0.1	FD		Add
MMF400D120B2B	1200	2X400	3	180	1130	0.11	FD		Add
MMF400D120U	1200	400	2.1	190	1450	0.085	FD		Add
MMF300D170B2B	1700	2X300	2	500	893	0.14	FD		Add
Type	V_RRM (V)	I_F(AV) (A)	V_F (V)	t_rr (ns)	P_D (W)	R_thJC (℃/W)	Packages	Datasheet	Inquiry
