Thyristor Module

RANGES:
.300-1600V / 35-200A

FEATURES:
.Compact Structure
.High Current Capability
.High Blcking Voltage
.High Reliability
.High Performance Price Ratio
.High Current Carrying Capability

CIRCUIT CONFIGURATIONS:
.Half Bridge Circuit
.Half-Controlled Bridge Circuit
.Rectifier and Switching Circuit

APPLICATIONS:
.Inverter
.Soft-Starter
.SMPS, UPS
.Welding Machine


DATASHEET

TC = 25°C unless otherwise noted.
Type VRRM
(V)
IT(AV)
(A)
VTM
(V)
ITM
(A)
RthJC
(℃/W)

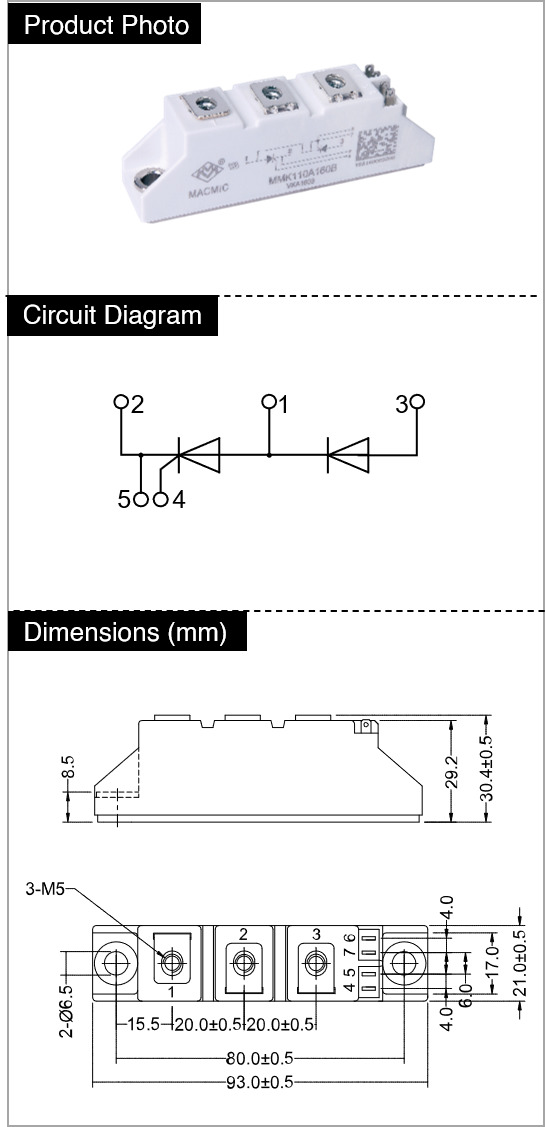

Packages Zoom Datasheet
MMK90A160UK1600901.62820.35KAViewthyristor module
MMK200S160UA16002001.755000.12KSViewthyristor module
MMK110A160UA16001100.33451.54KAViewthyristor module
MMK90A160UA1600901.62820.35KAViewthyristor module
MMK40A160UA1600401.811410.5KAViewthyristor module
MMK150X030DA3001501.154500.1KXViewthyristor module
MMK35LB160HB1600351.71100.24KLBViewthyristor module
MMK200X040DA4002001.26000.15KXViewthyristor module
MMK200T160UX6J16002001.22000.1KTViewthyristor module
MMK150T160UX6J16001501.181500.18KTViewthyristor module
MMK100U160UX6J16001001.151000.2KUViewthyristor module
MMK75U160UX6J1600751.15750.25KUViewthyristor module
MMK200T160UX16002001.65000.13KTViewthyristor module
MMK150T160UX16001501.654000.16KTViewthyristor module
MMK100T160UX16001001.543140.24KTViewthyristor module
MMK100U160UX16001001.653150.24KUViewthyristor module
MMK75U160UX1600751.52350.35KUViewthyristor module
MMK110A160DK16001101.83450.24KAViewthyristor module
MMK110A160DA16001101.83450.24KAViewthyristor module
MMK200S160B16002001.756000.12KSViewthyristor module
MMK160S160B16001601.545000.18KSViewthyristor module
MMK110A160B16001101.652800.25KAViewthyristor module
MMK90A160B1600901.62820.35KAViewthyristor module
MMK60A160B1600601.541880.45KAViewthyristor module
MMK40A160B1600401.811410.5KAViewthyristor module
Type VRRM
(V)
IT(AV)
(A)
VTM
(V)
ITM
(A)
RthJC
(℃/W)
Packages Zoom Datasheet
